alloy steel seamless steel pipe

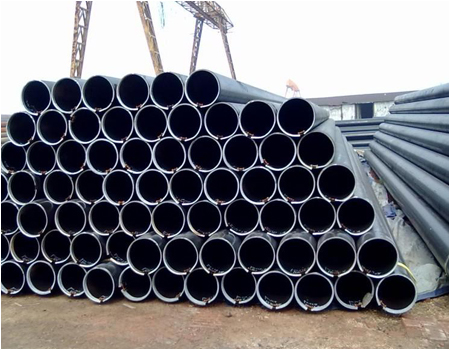

PIC-(alloy steel seamless steel pipe)
Seamless pipe for fluid transport generally used in water, oil, gas and other fluids, the main conduit for conveying fluid project and large equipment. The main materials are # 10#, # 20, ASTM A106 Gr.B and so on. In addition to the fluid medium such as water, oil, solutions and other liquid media, cement, grain, coal and other solid media, under certain conditions can also flow. Fluid seamless tube fluid tube is one of the most widely used products.
Standard: GB/T 8163
The component analysis is as the following:
The mechanical analysis is as the following:
Q345 or 16Mn in alloy steel pipe fittings the chemical and mechanical is as the following:
The chemical standard
Hebei Shengtian Group is a seamless steel pipe supplier . We welcome you to come and visit us.
Standard: GB/T 8163
Material: 10#,20#,Q345 etc.
Outside Diameter: 8-630mm
Thickness: 1-40mm
The material Q345 in fluid pipe in GB8163 there have three grade: Q345A,Q345B and Q345C. Q345 is also called 16Mn.Outside Diameter: 8-630mm
Thickness: 1-40mm
The component analysis is as the following:
| Grade | Chemical Component /％ | ||||||||||||
| C | Si | Mn | Cr | Mo | V | Ni | Ti | Nb | Cu | N | P | S | |
| Q345A | ≤0.20 | ≤0.50 | ≤0.17 | ≤0.30 | ≤0.10 | ≤0.15 | ≤0.50 | ≤0.20 | ≤0.07 | ≤0.30 | ≤0.012 | ≤0.030 | ≤0.030 |
| Q345B | ≤0.20 | ≤0.50 | ≤0.17 | ≤0.30 | ≤0.10 | ≤0.15 | ≤0.50 | ≤0.20 | ≤0.07 | ≤0.30 | ≤0.012 | ≤0.030 | ≤0.030 |
| Q345C | ≤0.20 | ≤0.50 | ≤0.17 | ≤0.30 | ≤0.10 | ≤0.15 | ≤0.50 | ≤0.20 | ≤0.07 | ≤0.30 | ≤0.012 | ≤0.030 | ≤0.030 |
The mechanical analysis is as the following:
| Grade | Normical THK mm | Tension Test | Impact Test | Hardness Test | |||
| R Mpa | R Mpa | A ％ | Test temperature ℃ | KV J | HBW | ||
| Q345A | ≤16 | 470~830 | ≥345 | ≥20 | |||
| Q345B | ≤16 | 470~630 | ≥345 | ≥20 | 20 | ≥34 | |
| Q345C | ≤16 | 470~630 | ≥345 | ≥21 | |||
Q345 or 16Mn in alloy steel pipe fittings the chemical and mechanical is as the following:
| Grade | Chemical Component /％ | |||||||
| C | Si | Mn | Cr | Ni | Cu | P | S | |
| 16Mn | 0.13~0.20 | 0.20~0.60 | 1.20~1.60 | ≤0.30 | ≤0.30 | ≤0.25 | ≤0.030 | ≤0.020 |
The chemical standard
| Grade | Normical THK mm | Tension Test | Impact Test | Hardness Test | |||
| R Mpa | R Mpa | A ％ | Test temperature ℃ | KV J | HBW | ||
| 16Mn | ≤100 | 480~630 | ≥305 | ≥20 | 0 | ≥34 | 128~180 |
Hebei Shengtian Group is a seamless steel pipe supplier . We welcome you to come and visit us.
